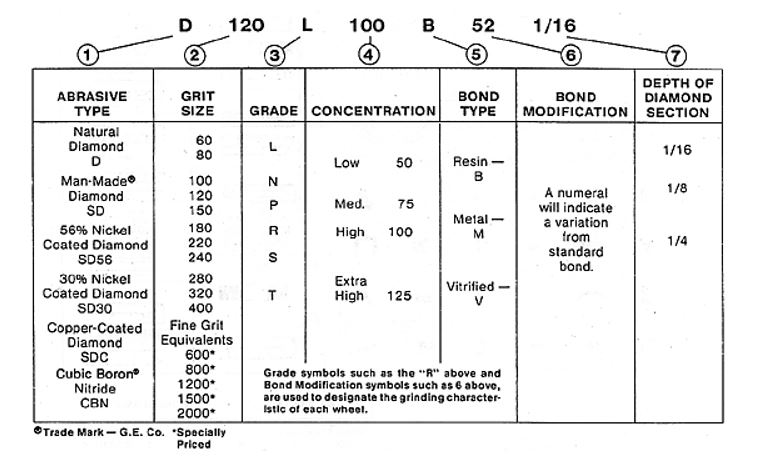

Interpretation of Diamond Wheel Markings

1. Specifies the abrasive	5. Bond type
2. Grit or particle size	6. Bond modification
3. Grade	7. Depth of diamond section
4. Concentration (100% = 72 cts./cu.in.)

ORDERING

The following information is required to fill your order correctly and promptly.

1. Quantity	4. Wheel size and arbor hole size
2. Wheel number	5. Complete specification
3. Wheel type	6. Advise if used wet or dry

Example:	1pc.	6042
		1A1
		6 x 1/4 x 1-1/4
		SD 150 N 100 B 52 1/8
		USING WET ON 883 CEMENTED CARBIDE
